Accessories

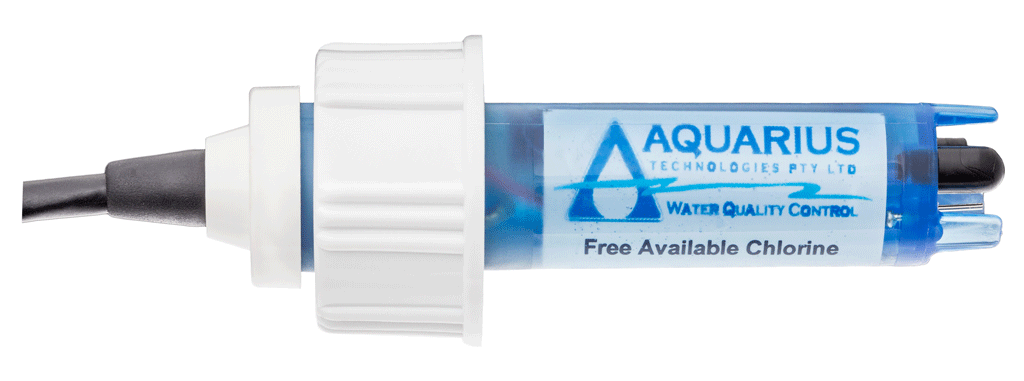

TARAline CS4MA-200 Free Chlorine Sensor

This membrane sensor is made for the measurement of Free Chlorine in water. *Reduced dependence on pH.

Specifications:

• Measurement System:  Membrane covered, amperometric potentiostatic 3-electrode system
• Reference: ECS2.1/GEL
• pH Range: pH 4 – pH 9
• Measurement Range: 0.5ppm to 200ppm (CS4MA-200)
• Resolution: 0.1ppm (CS4MA-200)
• Working Temp: 0°C to +45°C (in water)
• Max Pressure: 3 Bar (retaining ring), 0.5 Bar (no retaining ring)
• Flow Rate: Approx. 15-30 l/h (33 – 66 cm/s) in TARAflow FLC
• Output: Analog 4-20mA
• Dimensions: 190mm L (5-pole-M12)

SZ283 Cl₂, O₃ and ClO₂ Potentiostatic Electrode

This sensor is made for the measurement of Free Chlorine, Chlorine Dioxide and Dissolved Ozone in water.

Specifications:

• Electrodes: 2 Platinum Rings
• Reference: Gel with Annular Junction
• Body: Glass
• Cable: 3m
• Max Pressure: 10 bar at 20°C
• Dimensions: 110x12mm

TARAline CP4.0 Total Chlorine Sensor

This membrane sensor is made for the measurement of Total Chlorine (free chlorine + combined chlorine) in water. *Reduced dependence on pH.

Specifications:

• Measurement System:  Membrane covered, amperometric potentiostatic 3-electrode system
• Reference: ECP1.4/GEL
• pH Range: pH 4 – pH 12
• Measurement Range: 0.05ppm to 10.0ppm (CP4.0MA10)
• Resolution: 0.01ppm (CP4.0MA10)
• Working Temp: 0°C to +45°C (in water)
• Max Pressure: 3 Bar (retaining ring), 0.5 Bar (no retaining ring)
• Flow Rate: Approx. 15-30 l/h (33 – 66 cm/s) in TARAflow FLC
• Output: Analog 4-20mA
• Dimensions: 190mm L (5-pole-M12)

ST-730 Series Inline Turbidity Probes

These series of probes are more robust and tolerant to fouling, particulate and air bubble challenges compared to  alternative turbidity meters designed for relatively clean water applications. Isolated 4-20mA analogue and RS-485 digital outputs.

Applications:

• Industrial Process & Cooling Water
• Fresh | Brackish | Sea Water (CPVC versions only)
• Raw | Influent Water
• Wastewater Effluent
• Surface Water | Storm Water

Models:

• ST-730‎
  – 0-100 NTU Range | 0.1 NTU Resolution | ≤ 100psi

• ST-730B
  – 0-1,000 NTU Range | 1.0 NTU Resolution | ≤ 100psi

• ST-730SS
  – 0-100 NTU Range | 0.1 NTU Resolution | ≤ 290psi

• ST-731
  – 0-10 NTU Range | 0.05 NTU Resolution | ≤ 100psi

• ST-735
  – 0-10,000 NTU Range | 10.0 NTU Resolution | ≤ 100psi

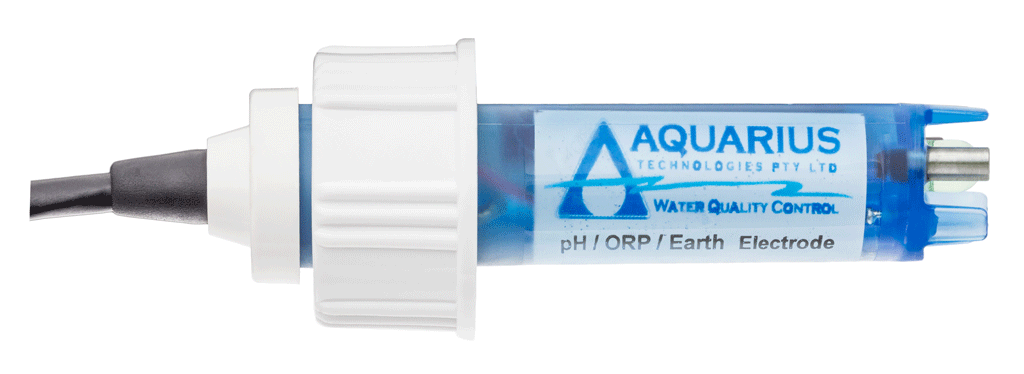

Aquarius Technologies pH / ORP Probe

Combination pH / ORP probes with built in Ground reference.

Aquarius Technologies FCT Probe

Flow / Conductivity / Temperature Probe

SZ283 Cl₂, O₃ and ClO₂ Potentiostatic Electrode

This sensor is made for the measurement of Free Chlorine, Chlorine Dioxide and Dissolved Ozone in water.

Specifications:

• Electrodes: 2 Platinum Rings
• Reference: Gel with Annular Junction
• Body: Glass
• Cable: 3m
• Max Pressure: 10 bar at 20°C
• Dimensions: 110x12mm

Low Level | Empty Tank Alarms

• Tank Alarm (Small): Adjustable to   500mm height with 3m pump tube & lead – 1 required per tank.

• Tank Alarm (Large): Adjustable to 1000mm height with 5m pump tube & lead – 1 required per tank.

TARAflow FLC-1.1 Flow Cell

Flow Cell for Membrane Sensor. Rated @ 45°C | 800kPa

TARAflow FLC-3 Flow Cell

Flow Cell for Membrane Sensor (High Temp). Rated @ 70°C | 800kPa

AS7004

pH Buffer Solution 4.01 – 250ml

AS7007

pH Buffer Solution 7.01 – 250ml

AS7010

pH Buffer Solution 10.0 – 250ml

AS5475

ORP Verification Solution 475mV  – 250ml

AS4250

Combination pH Buffer Solution 4.01   + ORP Calibration Solution 250mV  – 250 mls

AS7086

Combination pH Buffer Solution 7.01   + ORP Calibration Solution 86mV  – 250 mls

AS1413

Conductivity Standard 1413 uS/cm or 1.41 mS/cm @ 25°C – 250ml

AS2764

Conductivity Standard 2764 uS/cm or 2.76 mS/cm @ 25°C – 250ml

AS6443

Conductivity Standard 6443 uS/cm or 6.44 mS/cm @ 25°C – 250ml

AS9500

Electrode Cleaning Solution for Removal of Inorganic Deposits on Electrodes – 250ml

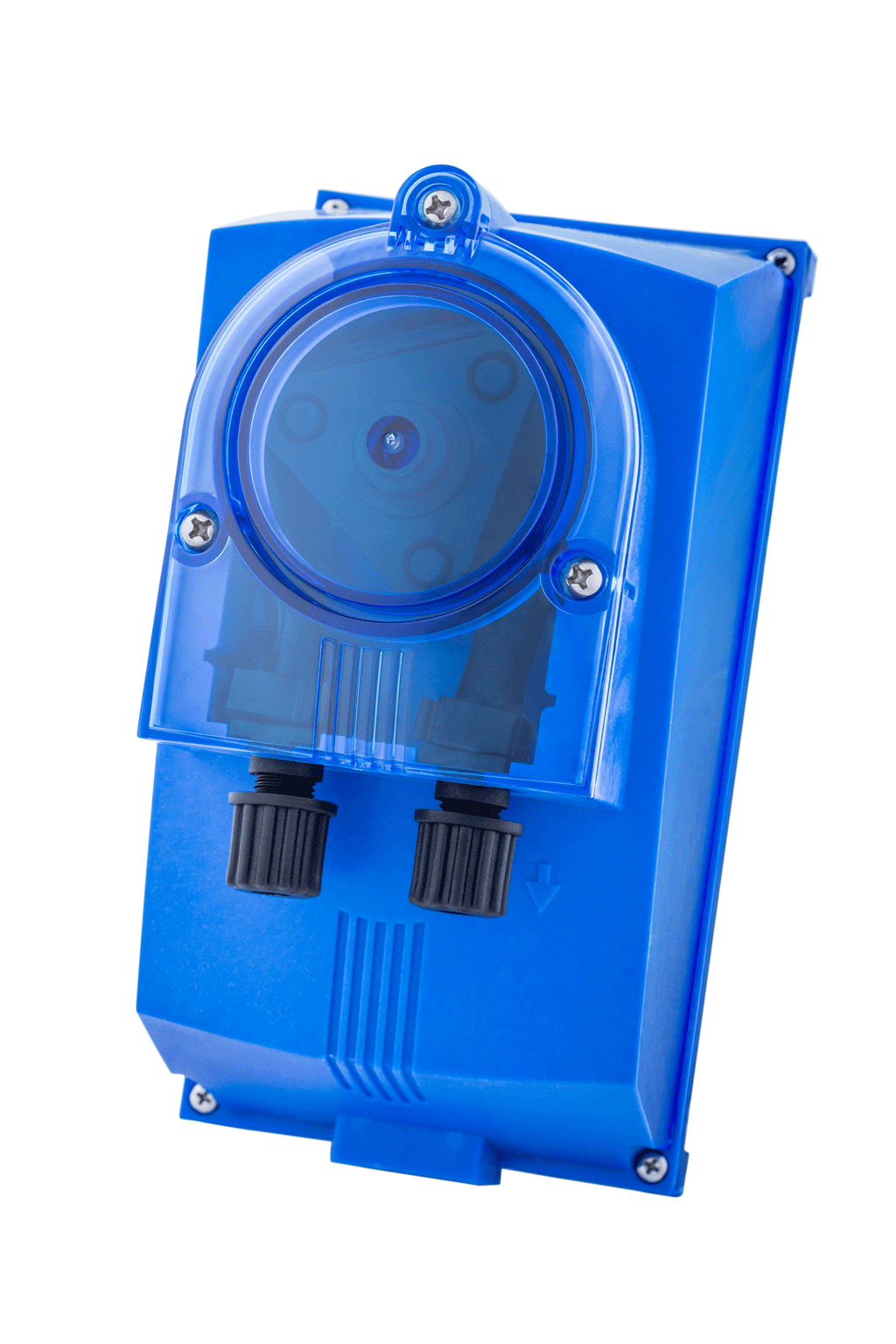

Aquarius Technologies Peristaltic Pumps

Powerful, robust and reliable peristaltic dosing pumps.

• AP Peri1 : Peristaltic Pump rated @ 1.0 l/hr with 3pin plug
• AP Peri3 : Peristaltic Pump rated @ 3.0 l/hr with 3pin plug

Athena AM3 Pulse Pump

Dosing pump with option of receiving external digital signal (pulse emitter water meter) or an analogue signal 4-20 mA. Manual flow regulation 0->100%.

• Flow Rate: 10 l/hr
• Max Pressure: 1,000 kPa
• Strokes/Min: 300
• Power Consumption: 40 watt
• Weight: 4Kg
• IP Rating: IP65

Athena AM4 Pulse Pump

Dosing pump with option of receiving external digital signal (pulse emitter water meter) or an analogue signal 4-20 mA. Manual flow regulation 0->100%.

• Flow Rate: 20 l/hr
• Max Pressure: 500 kPa
• Strokes/Min: 300
• Power Consumption: 40 watt
• Weight: 4Kg
• IP Rating: IP65

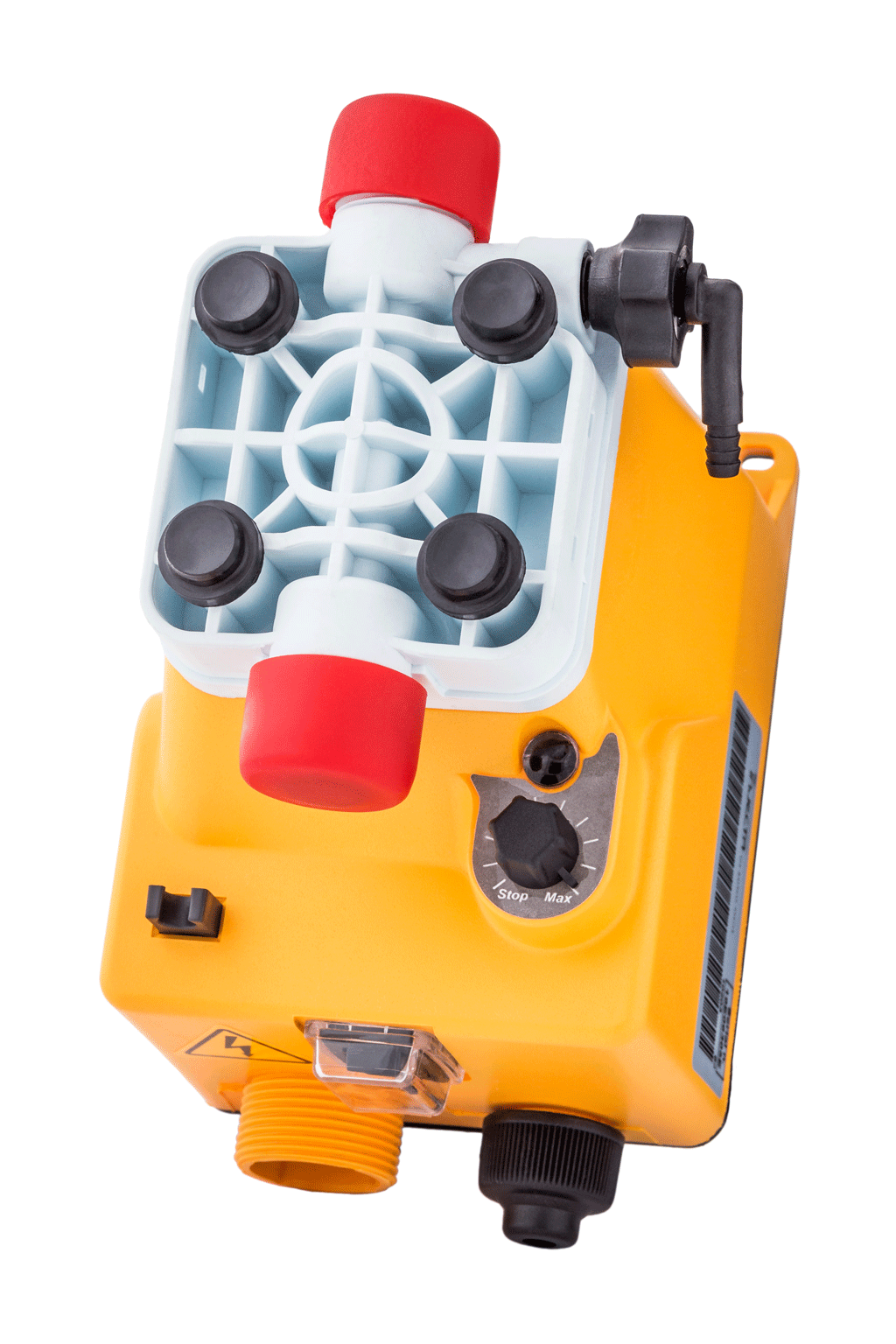

Olimpia Pulse Pumps

Variable + impulse electromagnetic dosing pumps.

• Olimpia OL.BB : rated 2.0L/h @ 700kPa | IP65
• Olimpia OL.BD : rated 5.0L/h @ 500kPa | IP65

A wide range of solenoid sizes and options are available from Aquarius.

CO₂ Regulator with 240VAC Solenoid Control

• 0-35 Lit/min CO₂ Regulator
• Dual Gauges – Tank | Outlet Pressure
• High Quality Gas Solenoid with AU 240VAC plug
• Brass Fittings
• Barbed Brass CO₂ Outlet

Turbine Water Meters with Pulse Emitter (Reed Switch). Available in various sizes.

• RH1 Water Meter : Hot | Cold 15mm – Max Flow   5m³/h, 4 lmp/L
• RH2 Water Meter : Hot | Cold 20mm – Max Flow   5m³/h, 4 lmp/L
• RH3 Water Meter : Hot | Cold 25mm – Max Flow   7m³/h, 4 lmp/L
• RH4 Water Meter : Hot | Cold 40mm – Max Flow 20m³/h, 4 lmp/L
• RH5 Water Meter : Hot | Cold 50mm – Max Flow 30m³/h, 4 lmp/L

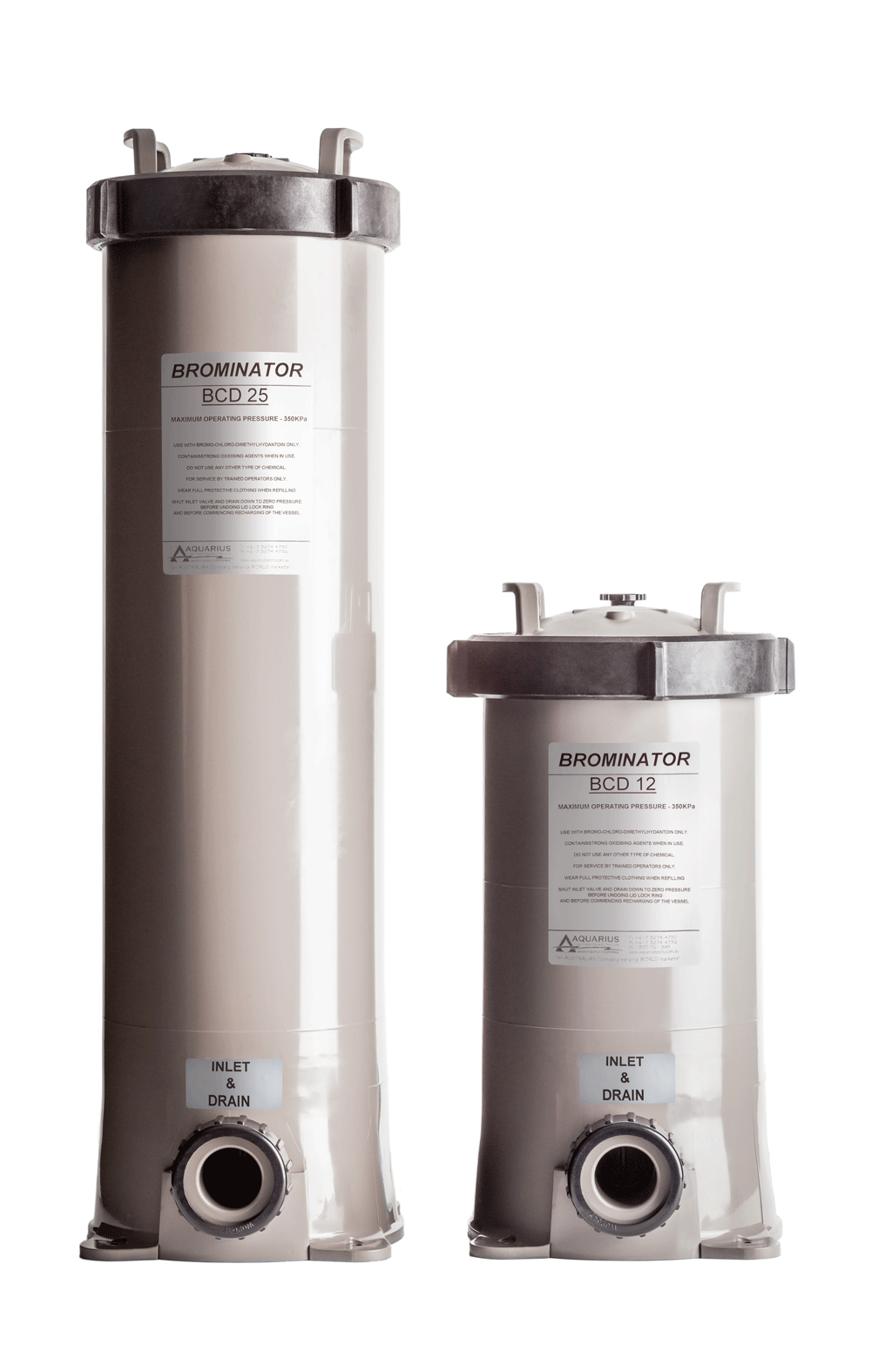

Pressure Rated Feeders for the Controlled Dissolution of BCDMH – Bromine Tablets or Briquettes 12kg | 25kg | 100kg capacity.

• BCD12 : 12kg capacity rated to 350 kPa. Internal manifold designed for erosion efficiency. *Requires 15mm Solenoid.
• BCD25 : 25kg capacity rated to 350 kPa. Internal manifold designed for erosion efficiency. *Requires 20mm Solenoid.
• BCD100 : 100kg capacity rated to 350 kPa. Internal manifold designed for erosion efficiency. *Requires 25mm Solenoid.

• Modem 4G 850 : Web communication bundle with 4G modem (Add Web Access). *Ultima models only.
• Modem 4G 900 : 4G modem – 900mhz to enable full web control capabilities | alarming – Overseas users only.
• Web Access : SIM Card and annual contract for using AquaReporter Web Portal (Cloud).

• WiFi Adapter : WiFi adapter replacement. *Ultima models only.
• Ethernet Adapter : Ethernet adapter replacement. *Ultima models only.

• BMS Board : PCB card to convert 8 signals to 4-20mA for BMS systems. *Ultima models only.
• Modbus Board : PCB card to enable Modbus capabilities to BMS|DDC systems. *Ultima models only.
